| Product Name | Package | Status | ESD | Configuration | Type | VDSS (V) | ID (A) | PD (W) | VGS (V) | Tj (℃） | Vth_Typ(V) | Rdson@VGS10V_TYP(mΩ) | Rdson@VGS10V_Max(mΩ) | Rdson@VGS4.5V_TYP(mΩ) | Rdson@VGS4.5V_Max(mΩ) | Rdson@VGS2.5V_TYP(mΩ) | Rdson@VGS2.5V_Max(mΩ) | Ciss_Typ(pF) | Coss_Typ(pF) | Crss_Typ(pF) | Qg_Typ(nC) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

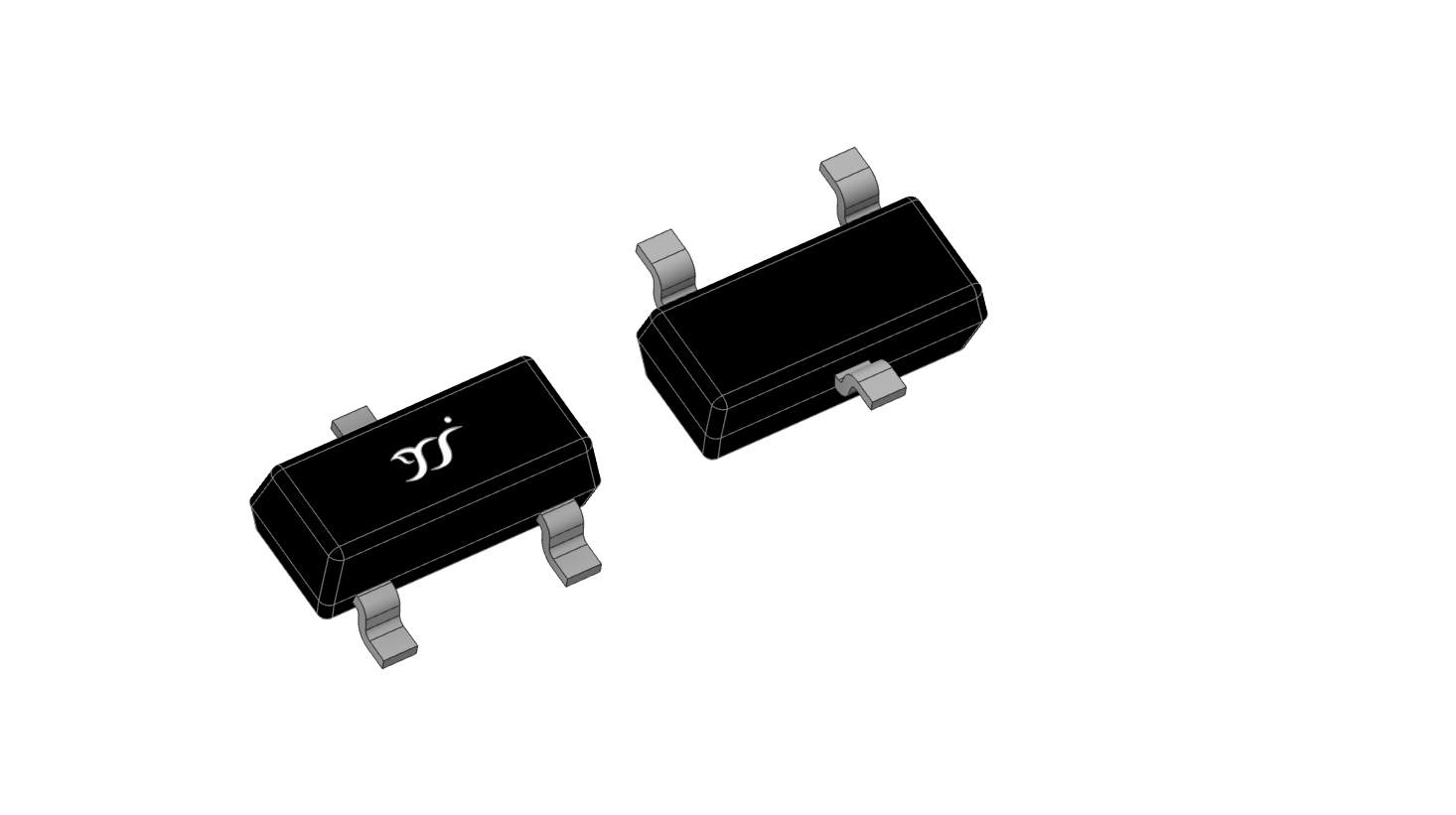

| YJL3404B | SOT-23 | Active | No | Single | N | 30 | 5.6 | 1 | ±20 | 150 | 1.6 | 18 | 24 | 33 | 43 | / | / | 390 | 70 | 55 | 8.3 | Industrial |
| Product Name | Package | PACKAGE CODE | UNIT WEIGHT(g) | MINIMUM PACKAGE(pcs) | INNER BOX QUANTITY(pcs) | OUTER CARTON QUANTITY(pcs) | DELIVERY MODE |
|---|---|---|---|---|---|---|---|
| YJL3404B | SOT-23 | F2 | Approximate 0.010 | 3K | 30K | 120K | Reel |
